Percussion Earth Anchors: A Solution for Slope and Embankment Stability

Antaeus EC100 and TD150 Earth Anchors: Sustainable Solutions for Soil Stability

Antaeus EC100 and TD150 earth anchors offer an innovative approach to managing soil erosion and improving soil stability. These anchors feature an open-face load-bearing plate that not only provides robust anchoring for geotextiles and other materials across diverse soil conditions but also actively encourages vegetation growth. This design promotes sustainability and helps preserve soil quality, making them an excellent choice for environmentally conscious projects.

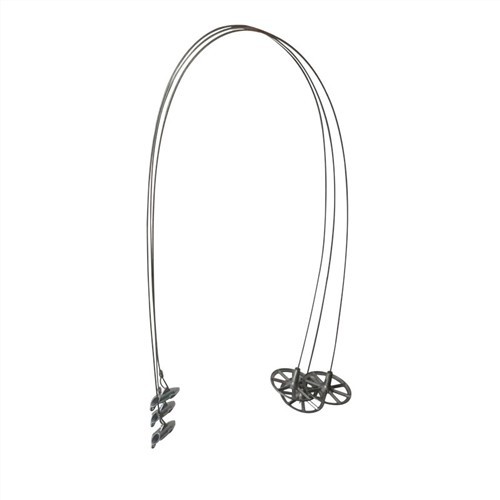

Each anchor comes pre-assembled with a wire rope tendon for easy deployment. Installation is straightforward, requiring only a specialized drive tool. A key benefit is the ability to re-tension the anchors without crimping, offering flexibility during and after installation. Typically constructed from coated steel for enhanced durability and corrosion resistance, some manufacturers also utilize fiberglass or aluminum. The protective coating ensures a long service life, making these anchors a lasting and effective solution for erosion control.



EC110 Series
Part no	EC110-1.5K-3mm	EC110-3K-3mm
Anchor head	1.5K-6KN 88*28.5*44.5mm Galvanized steel	3K-8KN 123*39.5*29.3mm Galvanized steel
Top termination	110mm Aluminum alloy Ultimate Strength 5.2KN	110mm Aluminum alloy Ultimate Strength 5.2KN
Cable	1*19 Galvanized steel Dia: 3mm L: 1.5m Ultimate Strength 8.67KN	1*19 Galvanized steel Dia: 3mm L: 1.5m Ultimate Strength 8.67KN

TD150 Series
Part no	TD150-1.5K-3mm	TD150-3K-3mm	TD150-6K-4mm
Anchor head	1.5K-6KN 88*28.5*44.5mm Galvanized steel	3K-8KN 123*39.5*29.3mm Galvanized steel	6K-30KN 160*59*43mm Galvanized steel
Top termination	150mm PE	150mm PE	150mm PE
Cable	1*19 Galvanized steel Dia: 3mm L: 1.5m Ultimate Strength 8.67KN	1*19 Galvanized steel Dia: 3mm L: 1.5m Ultimate Strength 8.67KN	1*19 Galvanized steel Dia: 4mm L: 2m Ultimate Strength 15KN



EC158-4Series
Part no	EC158-3K-4mm	EC158-6K-4mm
Anchor head	3K-8KN 123*39.5*29.3mm Galvanized steel	6K-30KN 160*59*43mm Galvanized steel
Top termination	158mm Steel with gal and green powder	158mm Steel with gal and green powder
Cable	1*19 Galvanized steel Dia: 4mm L: 2m Ultimate Strength 15KN	1*19 Galvanized steel Dia: 4mm L: 2m Ultimate Strength 15KN
EC158-5Series
Part no	EC158-3K-5mm	EC158-6K-5mm	EC158-11K-5mm
Anchor head	3K-8KN 123*39.5*29.3mm Galvanized steel	6K-30KN 160*59*43mm Galvanized steel	11K-100KN 211*61*98mm Galvanized steel
Top termination	158mm Steel with gal and green powder	158mm Steel with gal and green powder	158mm Steel with gal and green powder
Cable	7*19 Galvanized steel Dia: 5mm L: 2m Ultimate Strength 16.5KN	7*19 Galvanized steel Dia: 5mm L: 2m Ultimate Strength 16.5KN	7*19 Galvanized steel Dia: 5mm L: 2m Ultimate Strength 16.5KN
EC200Series
Part no	EC200-16K-6mm
Anchor head	16K-50KN 360*80*60mm Galvanized steel
Top termination	200mm Steel with gal and green powder
Cable	7*19 Galvanized steel Dia: 6mm L: 2m Ultimate Strength 44KN









1:Open face design: The open face design is an innovative feature that encourages the growth of vegetation through the anchor. This design promotes soil stability, which is beneficial for the environment. By incorporating natural elements into the design, we can enhance the sustainability of our infrastructure.

2:High load capacity: The EC110 and TD150 percussion earth anchor with high load capacity. This feature makes it suitable for a variety of soil types and demanding applications. The content has been rewritten in a positive tone.

3:Pre-assembled: Pre assembled earth anchor  set will saves time and labor during installation on site.

4:Re-tensioning capability: sit With innovative re-tensioning capability, adjustmets cn be made even after installation. This feature allows for ease for ease and vonenience in ensuring that the erosion control earth anchor system remaiins properly tensioned, leading to a more efficient and reliable solution.

5:Wire rope tendon: All the wire rope can design length,can be cut below grade to suit specific project requirements.

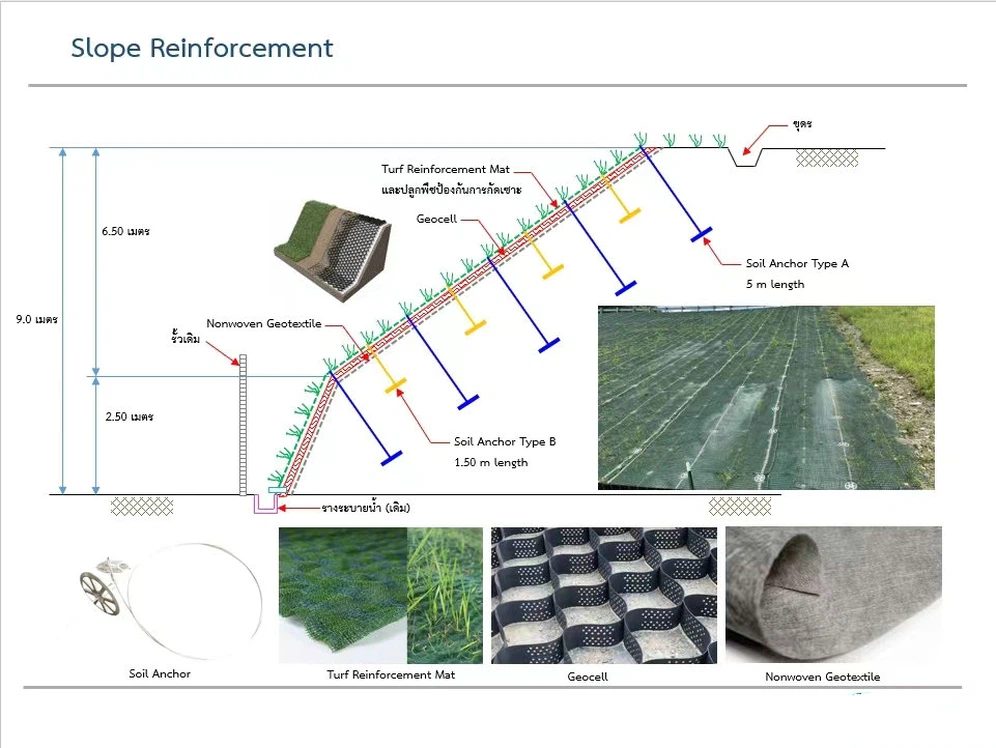

These earth anchors are primarily used for crucial applications like slope stabilization, erosion control, riverbank protection, channel lining, and establishing vegetation on steep slopes. Their effectiveness is often validated by dedicated testing facilities, such as the Rainfall Erosion Facility (REF), Channel Erosion Research Facility (CERF), and Sediment Control Facility (SCF). These labs contribute to advancements by testing erosion and sediment control products, hosting educational field days, and conducting essential research and development.

Proper installation is key for these anchors to effectively prevent erosion. It typically requires specialized equipment like a drill rig or a handheld hydraulic driver. The ideal depth and angle of installation depend heavily on the specific soil conditions and the project's load requirements. Ensuring the anchors are securely fastened is critical for their long-term performance and the overall success of the erosion control efforts.





Using earth anchors for erosion control has many benefits. They can be used to stabilize slopes, shore up embankments, and prevent landslides. They are also an eco-friendly solution since they do not require the use of chemicals or other harmful substances. Additionally, they are cost-effective and require little maintenance.

Environmental impact:Erosion control Earth anchors are a low-impact erosion control solution that does not require significant grading or disturbance of the soil. They are often used in environmentally sensitive areas where traditional erosion control methods may cause more harm than good.

Cost-effective: Earth anchors are a cost-effective solution compared to traditional erosion control methods, such as riprap or concrete structures. The installation costs are typically lower, and the anchors require less maintenance over time.

Long-lasting: Earth anchors are a long-lasting solution that can provide erosion control for many years. They are designed to withstand harsh weather conditions, such as heavy rain, strong winds, and snow.

Customizable: Earth anchors are customizable to meet the specific needs of a project. They can be installed at various angles and depths, and the load capacity can be adjusted based on the soil conditions and the load requirements.





















Q1: Is it all right to make customer's own brand name?

 A：If the customer supply their own design or samples, and invest the toolings, it is ok to make customer's own brand name on product.

Q2：What is an erosion control anchor?

A：An erosion control anchor is a device, typically made of metal or plastic, designed to secure erosion control blankets, mats, or other materials to the ground, preventing them from shifting or being washed away by water flow on slopes.

Q3：What is the main purpose of an erosion control anchor?

A：The erosion control earth anchor mainly used to hold erosion control materials in place, especially on steep slopes, to minimize soil loss caused by rain or runoff water.

Q4：What are the different types of erosion control anchors?

A：At present, our percussion type earth anchors mainly used for the erosion control. Its pre-assembly unique will save a lot of time and labor.

Q5：How do I choose the right erosion control anchor for my project?

A: Before you start install your project, it is better to consider factors like soil type, slope angle, anticipated water flow, and the type of erosion control material being used.

Q6：What is the proper way to install erosion control anchors?

A: Typically, anchors are placed at regular intervals along the length of the erosion control material, driven into the ground at a proper angle to ensure stability.

Q7：How deep should I install the anchors?

A: The depth of installation depends on the soil conditions and the anchor design, but generally should be deep enough to provide adequate holding power. And also have relation with the anchor size you choosed.

Q8：Do I need to maintain erosion control anchors?

A:Yes, regular inspections are necessary to check for any damage or displacement, particularly after heavy rainfall or extreme weather events.Maintenance: Erosion Control Earth Anchor require little maintenance once installed, but periodic inspections are recommended to ensure they remain secure and undamaged. If an anchor becomes loose or damaged, it may need to be replaced or repaired.

Q9：What are potential issues with erosion control anchors?

A: Improper installation, incorrect anchor selection for soil type, insufficient anchor density, and damage from heavy weather can affect their effectiveness.

Q10：Can I use erosion control anchors on steep slopes?

A: Yes, but it's crucial to choose anchors with high holding capacity and install them at closer intervals on steeper slopes.

Q11：Are erosion control anchors suitable for sandy soil?

A: Depending on the anchor design, they can be used in sandy soil, but may require additional considerations for optimal performance.

Q12：Does your product have warranty service?How long is the warranty period?

A: Yes. We have warranty service. It depends on the earth anchor type and surfacement choice.

Q13：What is the maximum slope for erosion control blanket?

A:These site conditions will consist of the slope, water flow, and erosion control requirements. The maximum slope that the single net straw erosion control blanket can handle is a 3:1 slope with a low water flow that needs a gentle, minimum about of stabilization.

Q14:How long do you leave an erosion control blanket on?

A: Erosion control blankets typically last between three months to three years.ECBs compliment, and increase the effectiveness of hydroseeding. Erosion control blankets are made of straw, wood excelsior, coconut fiber, and polypropylene.

Q5:How long is the delivery period of the product?

A: Some earth anchor have stock, delivery at sight. The production for mass order usually about 30days.
