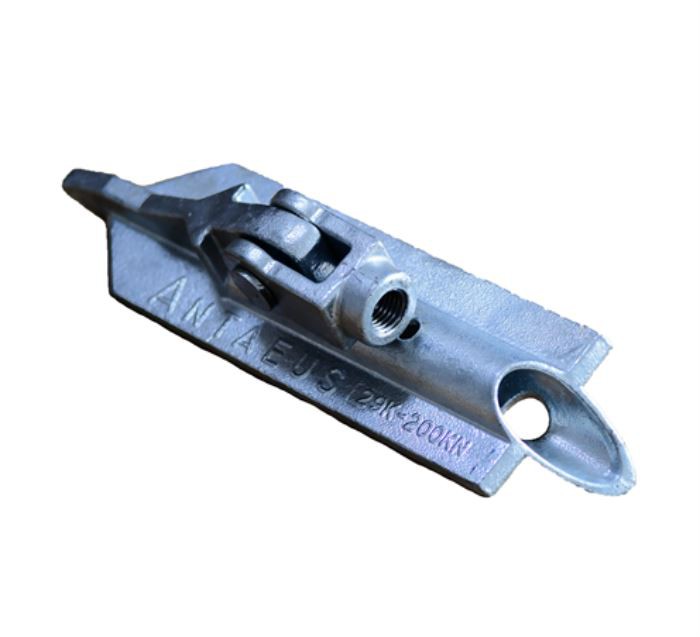

Antaeus Style Medium-heavy Capacity Percussion Antaeus Earth Anchor

CM® earth anchors are driven tipping plate soil anchors for reaction of tensile loads. CM anchors have ultimate capacities up to 20 tons. The beautifully simple, effective and low cost CM anchor system represents a major breakthrough in anchoring technology with a multitude of uses in the Utility, Civil Engineering and Marine Markets.

CM offers cost reductions for the installation and repair of walls, sheet piles and seawalls. Many of our customers utilize CM anchors to shore-up, stabilize and repair failing walls with superb economic advantages. The bottom line is CM is the solution to all your anchoring problems.



Medium-Heavy Capacity Earth Anchor System

● Utility Poles

● Electric Towers

● Pontoons

● Sheet Piles

● Revetment Mats

● Gabions

● Block Walls

● Basement Walls

● Sea Walls

● Boat Moorings

● Docks

● Pipelines



CM® anchors, a patented labor and time saving device, work like a toggle bolt in soil. The anchors are driven into the ground (with no holes, no digging and no concrete), providing a safe and environmentally sensitive installation.

After driving the anchor to the required depth, the drive steel is removed and an upward pull on the anchor rod rotates the CM into a perpendicular "anchor lock" position in undisturbed soil. After the anchor is tipped it can be simultaneously load tested. The result: superb holding capacities. CM anchor systems offer breakthrough earth anchoring technology for uses in the Utility, Civil Engineering, Marine and Construction markets.

CM offers cost reductions for repair of existing walls, sheet piles and seawalls. Many of our customers utilize CM's to shore-up, stabilize and repair failing walls with superb economic advantages. The bottom line is CM is the solution to all your anchoring problems.



Soil Class	Description	Probe Value(in./lbs)
1	soild bedrock	over 600
2	dense clay;compact gravel dense fine sand;laminated rock;slate;schist;sand stone	500-600
3	shale;borken bedrock;hardpan compact gravel clay mixtures	400-500
4	gravel;compact gravel and sand;claypen	300-400
5	medium-firm clay;loose sandard gravel;compact coarse sand	200-300
6	medium-firm clay;loose coarse sand;clayey silt;compact fine sand	100-200
7	fill;loose fine sand;wet clays;silt	100
8	swamp marsh;saturated silty;humus	under 100



Applications





Product installation
