Stabilize Slopes And Embankments With Percussion Earth Anchors



Stabilize slopes and embankments with percussion earth anchors:Erosion control Earth Anchor System EC-110 and TD150

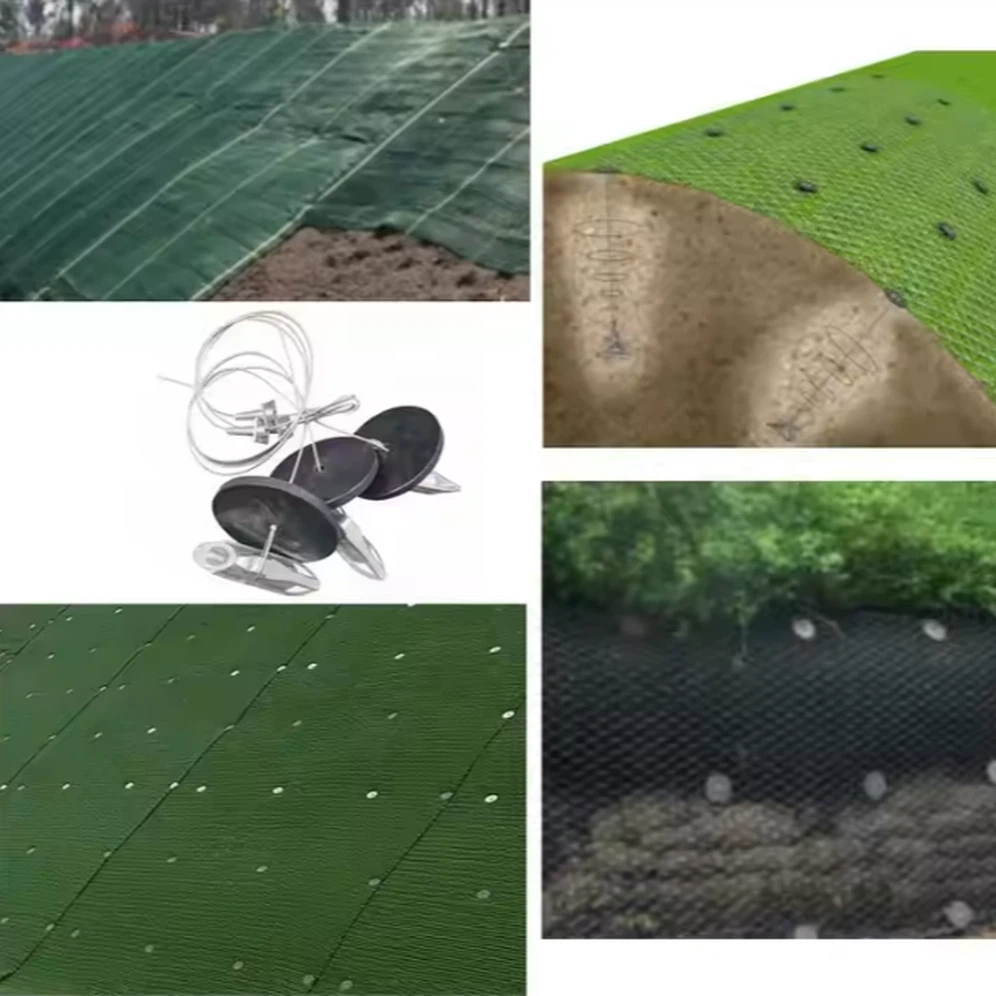

The EC100 and TD150 earth anchors, produced by Antaeus, are brilliant solutions for managing soil erosion and enhancing soil stability. They come with an open face load bearing plate that encourages the growth of vegetation, while firmly anchoring geotextiles and other materials in various soil conditions. These earth percussion anchors are perfect for promoting sustainability and preserving soil quality. This product comes pre-assembled with a wire rope tendon and can be effortlessly installed using a specialized drive tool, providing an opportunity for re-tensioning without the requirement of crimping.

Materials: Earth anchors are typically made of steel, although some manufacturers use other materials such as fiberglass or aluminum. The steel is coated with a protective layer to prevent corrosion and increase durability. When it comes to erosion control, using earth anchors can be an effective solution. Earth anchors are typically made of steel, although some manufacturers use other materials like fiberglass or aluminum. The steel is coated with a protective layer to prevent corrosion and increase durability, ensuring that the anchors will last for a long time.



Model	Errosion Control EC-110 Anchor Assembly
Kit Content	1PCS anchors Wire Dia 3mm of 48inch per anchor attached 1PC selflock anchor plate
Ultimate strength	Maximum Working Load(1) 450kg Ultimate Assembly Strength 500kg Ultimate Wire Rope Strength 815kg
Apply to	Geotechnical engineering for erosion control, soil retention & slope reinforcement.

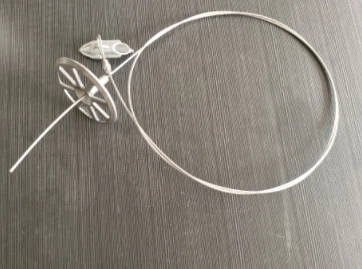

Model	TD150Erosion Control Anchors with Turf Disks: Pack of 3 for Secure Grounding
Kit Content	1PC anchor assemble (Anchor L160.58mm, W 41.07mm ) Wire Dia 4mm of 54inch (1371.6mm) per anchor attached 1PC nylon plate of DIA150mm 1PC selflock quick vise
Ultimate strength	30KN each anchor, Soil bearing area 5942mm2
Apply to	Landscape fabric, erosion blankets, liners, riverbanks etc





1:Open face design: The open face design is an innovative feature that encourages the growth of vegetation through the anchor. This design promotes soil stability, which is beneficial for the environment. By incorporating natural elements into the design, we can enhance the sustainability of our infrastructure.

2:High load capacity: The EC110 and TD150 percussion earth anchor with high load capacity. This feature makes it suitable for a variety of soil types and demanding applications. The content has been rewritten in a positive tone.

3:Pre-assembled: Pre assembled earth anchor  set will saves time and labor during installation on site.

4:Re-tensioning capability: sit With innovative re-tensioning capability, adjustmets cn be made even after installation. This feature allows for ease for ease and vonenience in ensuring that the erosion control earth anchor system remaiins properly tensioned, leading to a more efficient and reliable solution.

5:Wire rope tendon: All the wire rope can design length,can be cut below grade to suit specific project requirements.





This type earth anchors mainly used for Slope stabilization, Erosion control, Riverbank protection, Channel lining, and Vegetation establishment on steep slopes. And erosion control testing laboratory with three impressive facilities: the Rainfall Erosion Facility (REF), Channel Erosion Research Facility (CERF), and Sediment Control Facility (SCF). To achieves its goal through engaging in a variety of positive activities, including testing erosion and sediment control products, hosting educational field days, and conducting research and development processes.

Installation of Erosion Control Earth Anchor requires specialized equipment such as a drill rig or handheld hydraulic driver. The depth and angle of installation depend on the soil conditions and the load requirements of the project. Proper installation is crucial to ensure that the anchors are securely fastened and can effectively prevent erosion.





Using earth anchors for erosion control has many benefits. They can be used to stabilize slopes, shore up embankments, and prevent landslides. They are also an eco-friendly solution since they do not require the use of chemicals or other harmful substances. Additionally, they are cost-effective and require little maintenance.

Environmental impact:Erosion control Earth anchors are a low-impact erosion control solution that does not require significant grading or disturbance of the soil. They are often used in environmentally sensitive areas where traditional erosion control methods may cause more harm than good.

Cost-effective: Earth anchors are a cost-effective solution compared to traditional erosion control methods, such as riprap or concrete structures. The installation costs are typically lower, and the anchors require less maintenance over time.

Long-lasting: Earth anchors are a long-lasting solution that can provide erosion control for many years. They are designed to withstand harsh weather conditions, such as heavy rain, strong winds, and snow.

Customizable: Earth anchors are customizable to meet the specific needs of a project. They can be installed at various angles and depths, and the load capacity can be adjusted based on the soil conditions and the load requirements.





















Q1: Is it all right to make customer's own brand name?

 A：If the customer supply their own design or samples, and invest the toolings, it is ok to make customer's own brand name on product.

Q2：What is an erosion control anchor?

A：An erosion control anchor is a device, typically made of metal or plastic, designed to secure erosion control blankets, mats, or other materials to the ground, preventing them from shifting or being washed away by water flow on slopes.

Q3：What is the main purpose of an erosion control anchor?

A：The erosion control earth anchor mainly used to hold erosion control materials in place, especially on steep slopes, to minimize soil loss caused by rain or runoff water.

Q4：What are the different types of erosion control anchors?

A：At present, our percussion type earth anchors mainly used for the erosion control. Its pre-assembly unique will save a lot of time and labor.

Q5：How do I choose the right erosion control anchor for my project?

A: Before you start install your project, it is better to consider factors like soil type, slope angle, anticipated water flow, and the type of erosion control material being used.

Q6：What is the proper way to install erosion control anchors?

A: Typically, anchors are placed at regular intervals along the length of the erosion control material, driven into the ground at a proper angle to ensure stability.

Q7：How deep should I install the anchors?

A: The depth of installation depends on the soil conditions and the anchor design, but generally should be deep enough to provide adequate holding power. And also have relation with the anchor size you choosed.

Q8：Do I need to maintain erosion control anchors?

A:Yes, regular inspections are necessary to check for any damage or displacement, particularly after heavy rainfall or extreme weather events.Maintenance: Erosion Control Earth Anchor require little maintenance once installed, but periodic inspections are recommended to ensure they remain secure and undamaged. If an anchor becomes loose or damaged, it may need to be replaced or repaired.

Q9：What are potential issues with erosion control anchors?

A: Improper installation, incorrect anchor selection for soil type, insufficient anchor density, and damage from heavy weather can affect their effectiveness.

Q10：Can I use erosion control anchors on steep slopes?

A: Yes, but it's crucial to choose anchors with high holding capacity and install them at closer intervals on steeper slopes.

Q11：Are erosion control anchors suitable for sandy soil?

A: Depending on the anchor design, they can be used in sandy soil, but may require additional considerations for optimal performance.

Q12：Does your product have warranty service?How long is the warranty period?

A: Yes. We have warranty service. It depends on the earth anchor type and surfacement choice.

Q13：What is the maximum slope for erosion control blanket?

A:These site conditions will consist of the slope, water flow, and erosion control requirements. The maximum slope that the single net straw erosion control blanket can handle is a 3:1 slope with a low water flow that needs a gentle, minimum about of stabilization.

Q14:How long do you leave an erosion control blanket on?

A: Erosion control blankets typically last between three months to three years.ECBs compliment, and increase the effectiveness of hydroseeding. Erosion control blankets are made of straw, wood excelsior, coconut fiber, and polypropylene.

Q5:How long is the delivery period of the product?

A: Some earth anchor have stock, delivery at sight. The production for mass order usually about 30days.
