What is Ground Screws anchors
Ground Screws anchors, also known as Earth Screws, are metal piles that are drilled into the ground using a large drill. In the market, two types of screw piles are commonly used: Helical screw piles and Ground Screws anchor.

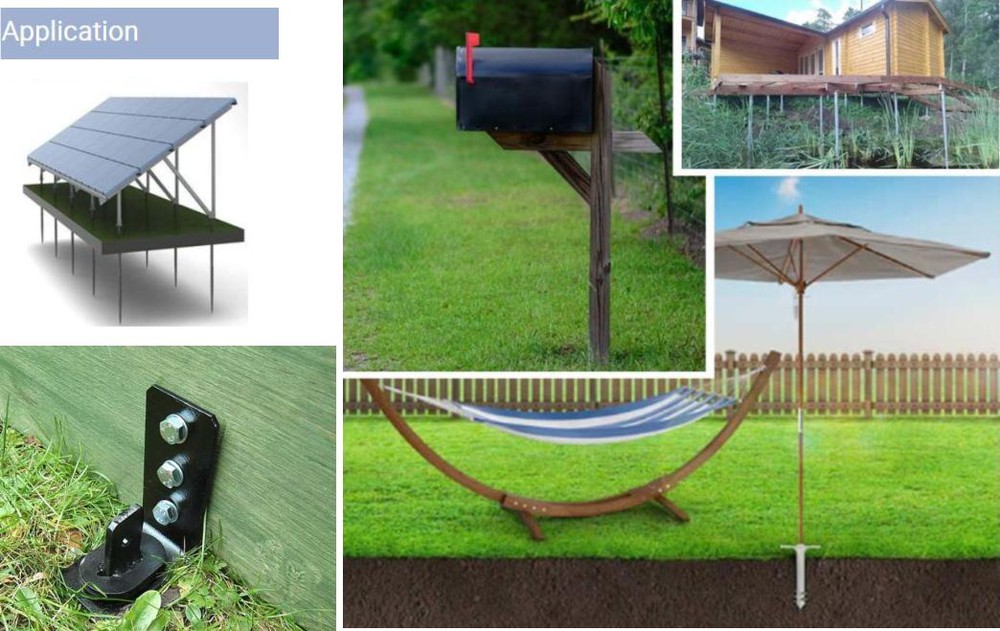

Ground screw anchors are an innovative and more effective solution for anchoring purposes. Traditional anchors, such as concrete blocks, are time-consuming, labor-intensive, and often require heavy machinery to install. On the other hand, ground screw anchors offer a more efficient and environmentally-friendly option that requires less time, labor, and machinery. They are suitable for a wide range of applications, including solar panels, fencing, signage, and construction projects.

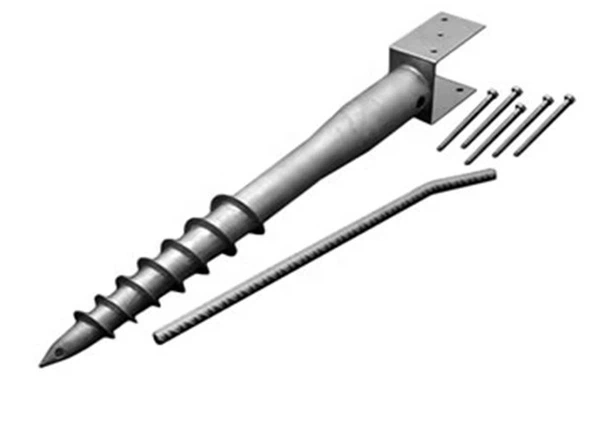

Ground screw anchors consist of a helix-shaped metal shaft and welded flanges. They are driven into the ground with the use of a hydraulic torque motor, without the need for excavation or concrete.
The types of ground screw anchors
Helical screw piles
This system is highly resilient and perfect for installing foundations in areas prone to shrinkage, swelling, or tree movement. It is also ideal for soft or filled ground. The sturdy helical screw piles have a remarkable lifespan of 85 to 120 years
Ground screws
Known as ‘Earth Screws’ or ‘Soil Screws’, these are a popular choice for low load applications. They come in handy as alternatives to shallow concrete foundations and work best on stable and solid ground.
Benefits of Ground Screws Anchor
Time-saving
Ground screw anchors can be installed in a fraction of the time it takes to install concrete blocks. The elimination of excavation, curing time, and heavy machinery allows for faster installation.
Shorter duration of project
Cost-effective
With less labor and machinery, ground screw anchors are more budget-friendly. They also require less maintenance over time, saving additional costs.
Eco-friendly
Ground screw anchors are more environmentally-friendly than concrete blocks because they don't require any heavy machinery or excavation, which leads to less soil disturbance.
Versatile
Ground screw anchors can be used in a variety of soil types and environments, including sandy, rocky, and clay soils.
Durable
Ground screw anchors offer a high load capacity and can withstand extreme weather conditions.
Our Ground Screw Anchor Features
1
Our ground screws anchors are crafted from premium materials and coated with a high-quality hot-dip galvanized finish to resist corrosion and ensure durable foundations that stand the test of time.
2
Our ground screws feature a spiral thread design that helps to reduce embedment depth, enhancing installation efficiency and leading to significant cost savings.
3
Achieving a top-notch foundation requires precision and alignment. Thanks to our patented, specially-crafted tip, our screws can be installed with unparalleled accuracy.
4
Ground screw anchors are installed using hydraulic installation equipment. The installation process involves driving the anchors vertically into the ground until the desired depth and torque is achieved. This ensures that the anchors provide secure foundation support and prevent structural movement.
The most common used pipe diameter is 76mm, 89mm, 114mm, pipe wall thickness from 3-6mm, length and spiral thread as required. For the length, some customer require 1200mm, 1600mm, 1800mm, 2000mm. Special length is ok to made as requirement.
Architectural design & planning cepteur sint occaecat cupidatat proident, taken possession of my entire soul, like these sweet mornings of spring which I enjoy with my whole...Architectural design & planning cepteur sint occaecat cupidatat proident, taken possession od my entire soul, like these sweet mornings of spring which I enjoy with my whole Lorem ipsum dolor sit ament, consectetur adipisicing elit,sed do eiusmod tempor incididunt labore et dolore magna aliqua. it enim ad minim veniam.
choose the right size pipe and cutting.The machine features automatic cutting and feeding, with PLC control and an LED touch screen. The cutting length is automatically controlled with a tolerance of ±0.2mm, and the end face is perpendicular within ±0.2mm/100mm. This impressive technology ensures precision and accuracy in all cuttings with a positive outlook on its capabilities.
Ground Screw Pipe AUTO Tapering. Use the Electrical Furnace heating which is easy installation, compact size, lightweight, and user-friendly design. It also begins heating quickly, using less power, while providing efficient results and reducing oxide. Additionally, there is no waste left after annealing, and the power and speed can be adjusted according to specific needs. This equipment is a great choice for anyone seeking reliable, efficient, and tailored heating options. By utilizing mechanical transmission, the steel tube can be rotated to eventually reach a certain temperature in the high-frequency heating furnace. Once the desired temperature is achieved, the steel pipe head is heated and molded into the desired shape. This process is innovative and efficient, resulting in positive outcomes.
Screw Flight winding and welding on pipe
Ground Screw Flange Plasma Cutting and welding. By removing the oxygen automatically, the flange appears shiny and free from oxidation. There is no need to clean the surface of the flange again, which saves labor and time costs. Let's celebrate this efficient solution.
|
|
|
|
|
|
|
|
We understand that each site is unique, and that's why our experienced engineering team offers customized solutions that cater to your project's specific requirements. Our team of geotechnical, structural, mechanical, electrical, and civil engineers are here to share their expertise and provide you with value-engineered solutions. We develop versatile products that can adapt to various applications, allowing us to quickly create an optimal solution that fits your project's unique needs. You can rely on us to streamline your project experience and help you achieve your goals.

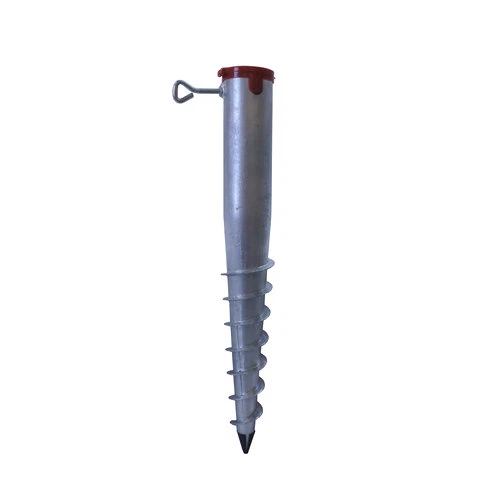

Is the ground screw anchor can be used for umbrella?
Yes. Very strong construction to holds the patio umbrella securely. This beach umbrella anchor worked perfectly. It held our umbrella steady even on the windiest days at the beach. Ground screw anchors can be used for umbrellas, but it’s important to choose the right size and type for your needs. Depending on the size and weight of your umbrella, you may need a larger or stronger ground screw anchor. It’s also recommended that you choose a ground screw with a wider helix diameter to increase its stability.
Is the ground anchor strong enough for wind?
Yes. Recently we had some rather strong winds, and everything held up nicely. I had to make a small addition when using it with a fiberglass pole, and that the three screws used to secure the pole, would dig into the pool too much so I put a small piece of flat metal in front of them to pinch onto the pole.
The ground screw anchor itself worked well sinking into the ground with a moderate amount of downward pressure while turning.
What is a Ground Screw Anchor?
A ground screw anchor, also known as a helical pile, is a steel screw-in anchor that's used to support structures, large or small, with minimal impact on the surrounding soil. The anchor is buried underground and secured into the ground with the use of a hydraulic or electric power head. Ground screw anchors can be used for a variety of applications, such as home construction or fencing, and are commonly used in areas with unstable soil conditions. They are installed directly into the ground without any concrete. They are an alternative to concrete piers and driven piles for ground anchorage and foundation support systems.
What is the weight capacity of a Ground Screw Anchor?
The weight capacity of a ground screw anchor depends on several factors, such as the length and diameter of the anchor, the soil conditions, and the weight of the structure it's supporting. In general, ground screw anchors can support loads ranging from 1,000 lbs to over 50,000 lbs.
How deep should Ground Screw Anchors be installed?
The depth of installation of a ground screw anchor will depend on the weight of the structure, the soil conditions, and the recommended installation depth for the specific type of anchor being used. In general, ground screw anchors are installed to a depth of at least 5 feet, although they can be installed deeper if necessary.
How is ground screw anchor welding done?
Ground screw anchor welding requires welding equipment, which can be either manual or automated. The equipment used depends on the size and type of the ground screw and the requirements of the project. The ground screw, steel pole, or structure needs to be cleaned and prepared for the welding process. The welding takes place by applying a high-intensity electrical current to the joint area, which melts the metal to create a solid bond.
What types of ground screws can be welded?
Ground screw welding is suitable for various types of ground screws, including square, circular, and hexagonal shapes. The size and shape of the ground screw depend on the project specifications and requirements.
What materials are used for ground screw welding?
The materials used for ground screw welding include a ground screw, steel pole or structure, and welding consumables such as electrodes, wire, and shielding gas. The type of welding used depends on the materials being welded and the required strength of the joint.
Is ground screw welding durable?
Ground screw anchor welding is a reliable and durable solution for constructing foundations. The welding creates a secure and long-lasting connection that is resistant to movement and vibrations. The durability of the welding depends on the quality of the welding and materials used.
Ground screw welding is a reliable method for securing ground screws to steel poles and structures. It provides a durable and long-lasting solution for constructing building foundations. The technique requires weld equipment, clean and prepared surfaces, and suitable welding consumables to achieve a strong bond. It is an effective and safe solution for constructing foundations, which can withstand various environmental conditions.
Can Ground Screw Anchors be installed in any soil type?
Yes, ground screw anchors can be installed in any soil type, although installation methods may vary depending on the soil conditions. When installed correctly, ground screw anchors provide a stable foundation for structures in any soil type, from fine sand to heavy clay.
We're professional ground screw anchor manufacturers and suppliers in China, providing high quality customized products with low price. If you're going to buy high-grade ground screw anchor in stock, welcome to get quotation and free sample from our factory.
