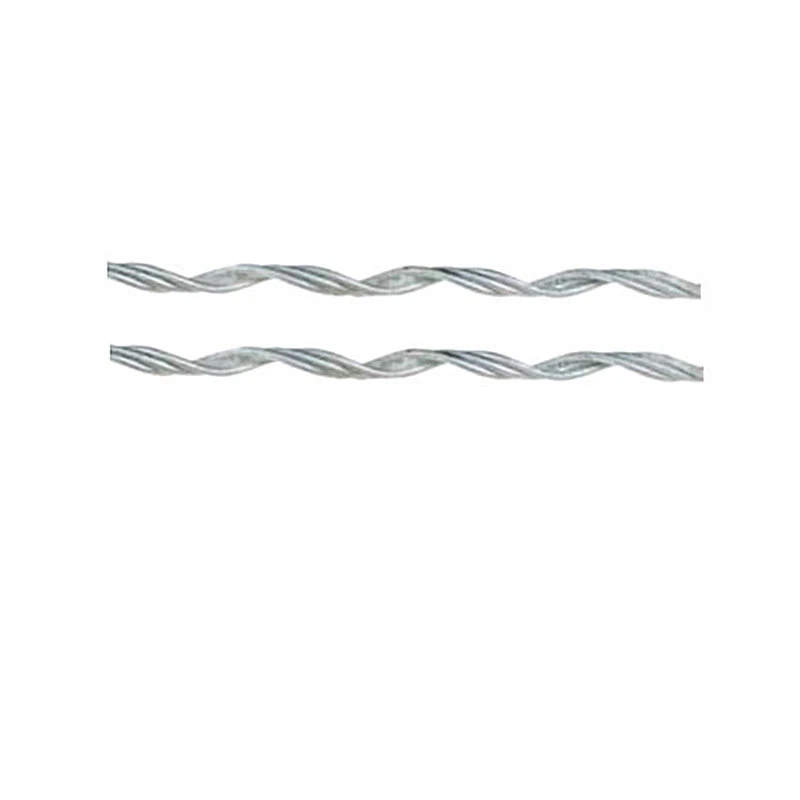

3.15mm Cable Splices

Cable Splice

The cable splice are manufactured from high tensile steel, treated by hot dip galvanized, used to secure joins and tie backs cables. The tensile strength can reach 1320 MPA.Innovative structure and precision design, so that the preformed tension set has a reliable performance . Grip strength of the Helical Tension Set is no less than 95% Rated Tensile Strength of the cable. Which also designed to protect cable against bending, compression, abrasion, and flash-over.

3.15mm splice:

Length: 3.15X780mm RH splice

To be utilized on 3.15mm wire

Tensile strength:1320MPA

6mm splice:

Length: 6 X1100mm RH splice

To be utilized on 6mm cable

Tensile strength:1320MPA

7.5mm splice:

Length: 7.5X1100mm RH splice

To be utilized on 7.5mm cable

Tensile strength:1320MPA

When it comes to electrical wiring projects, cable splicing is a critical component. A splice is a connection that is made between two cables to create a continuous flow of power. For splicing large cables, typically 315mm cables, precision is vital. Any mistakes in the splicing process can result in electrical hazards such as electrocution, electrical fires, or property damage. In this article, we will focus on 315mm cable splices in detail.

What is a 3.15mm Cable Splices?

A 3.15mm cable splice is a connection between two 315mm power cables. This type of splice is commonly used in high-voltage electrical installations such as sub-stations, industrial factories, and power plants. 315mm cables are used to carry a substantial amount of current, making them ideal for transmitting large amounts of power over long distances.

How 3.15mm cable splices work

To understand how 3.15mm cable splices work, you need to know the different components that make up a splice. These components include:

1. Cable lugs: These are metal connectors that attach to the ends of the cables. They're usually made of copper or aluminum and come in different sizes.

2. Cable sleeves: Also known as heat-shrink tubes, these are insulating tubes that cover the cable lugs to protect them from moisture and other environmental factors. The sleeves are usually made of heat-shrinkable plastic.

3. Insulating tapes: These are used to wrap the individual cables and create a barrier between the cables and the sleeve. They're usually made of rubber.

The splicing process begins by preparing the cables for connection. The cables must be stripped of their insulation to expose the metal conductor. Once the conductor is exposed, it is cleaned to remove any dirt or corrosion.

Next, the cable lugs are attached to the ends of the conductors using special crimping tools. The lugs are then covered with insulating sleeves, and the individual cables are wrapped with insulating tape.

The final step is to connect the two cables by joining the lugs. The lugs are bolted together, ensuring that the cables are tightly connected. The sleeve is then heated to shrink, creating a tight seal around the lugs and cables.

Tools used for 3.15mm Cable Splices

315mm cable splicing requires specialized tools to ensure that the splicing process is done correctly. Some of the tools used during the splicing process include:

1. Cable cutters: Used to cut cables to the desired length.

2. Cable strippers: Used to remove the insulation from the cables.

3. Crimping tools: Used to secure the cable lugs to the conductors.

4. Heat guns: Used to shrink the heat-shrink sleeves around the lugs and cables.

5. Insulating tapes: Used to wrap the individual cables.

Benefits of 3.15mm cable splicing

The benefits of 3.15mm Cable Splices are numerous. Some of the most significant benefits are:

1. Safety: Splicing cables correctly and efficiently helps prevent electrocution and electrical fires.

2. Increased efficiency: Proper splicing ensures that power is transmitted without loss, which translates into energy efficiency.

3. Durability: Correctly spliced 3.15mm cables can last for several years with minimum maintenance.

Conclusion

3.15mm Cable Splices is a critical component of many electrical installations, whether in industrial settings or power plants. Proper cable splicing is essential for safety, efficiency, and durability. It's important to use the right equipment and follow the proper procedures to ensure that the splicing process is done correctly. In case of difficulty, you can consult with an expert electrician to ensure that splicing has been done correctly.
